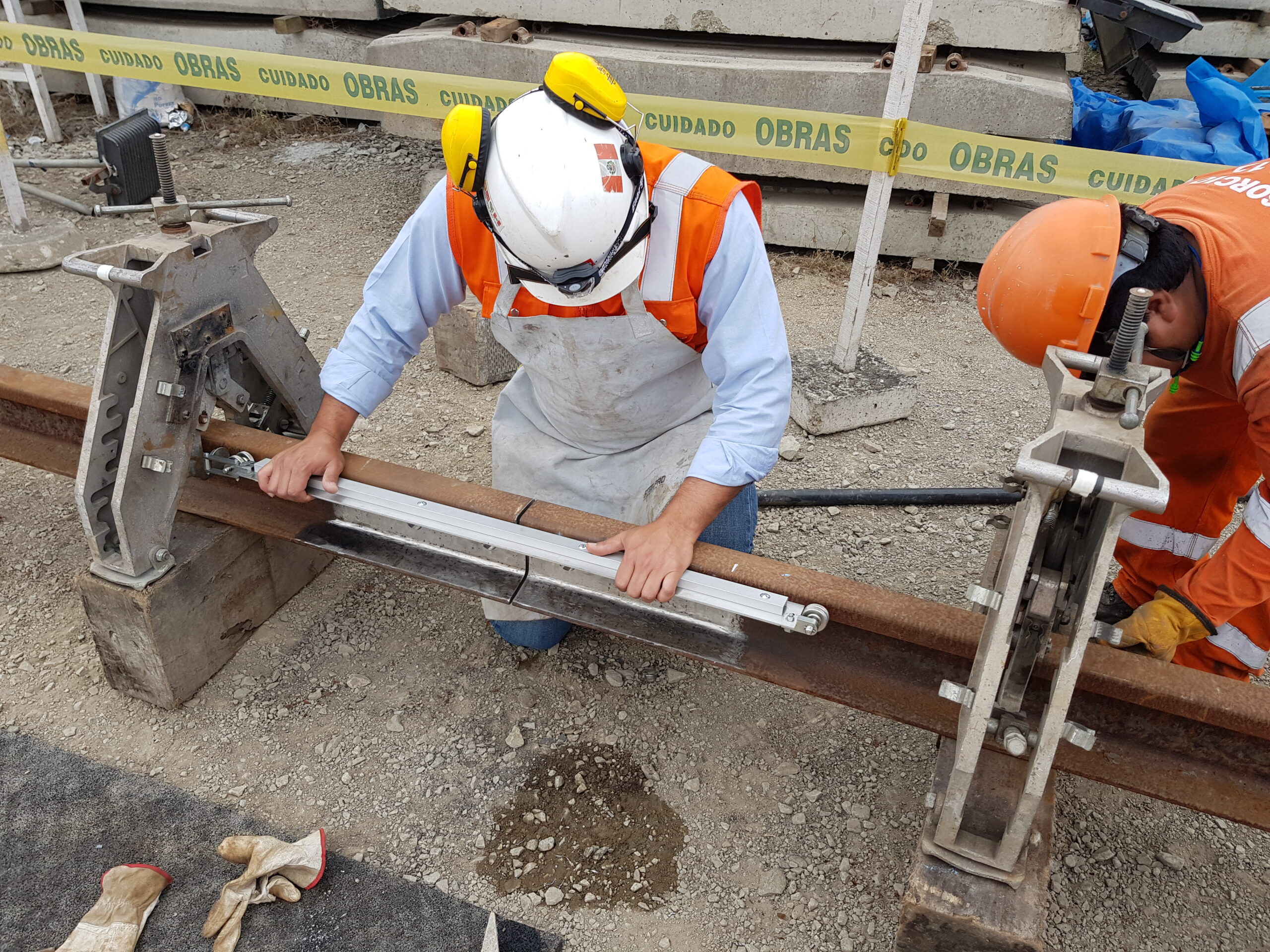

Rails with Insulated Joints are manufactured in our workshop.

COUPONS OF RAIL WITH INSULATED JOINT

  • System with improved strength (fishplates, adhesive and insulating components)
  • Dimensional and electrical resistance testing to secure tolerances for all railway standards
  • Electrical resistance inspection to
    secure MOhm value according to
    Railway norms
VIEW details
  • ISD-ALMAR

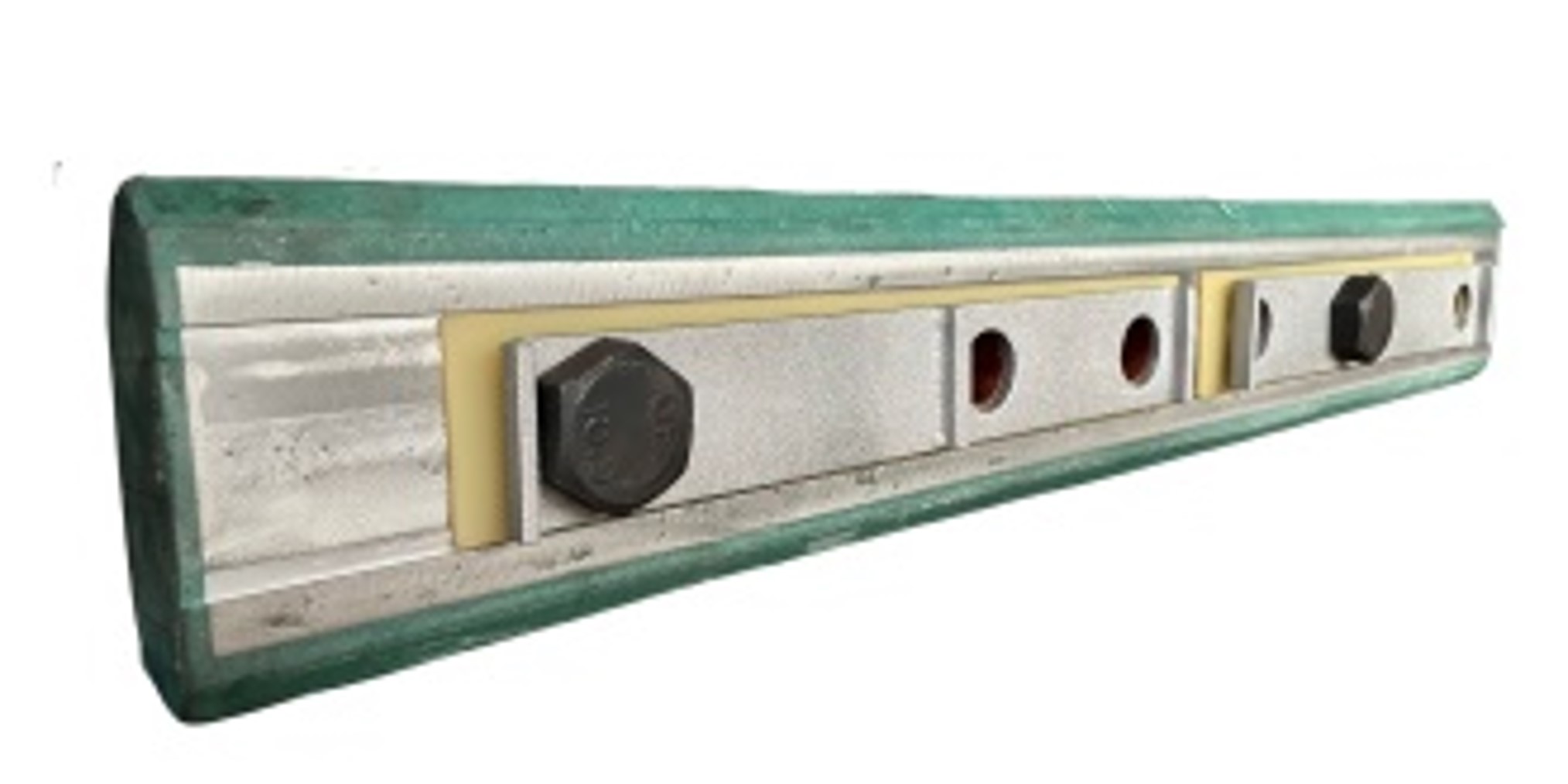

ISD

The insulated dry joint uses an insulation process
that meets the requirements.

  • High-strength rail fastening with pre-insulated, coated
    fishplates
  • Strong and durable system by using steel fishplates
  • Simply assembling by process only be screwing
VIEW details

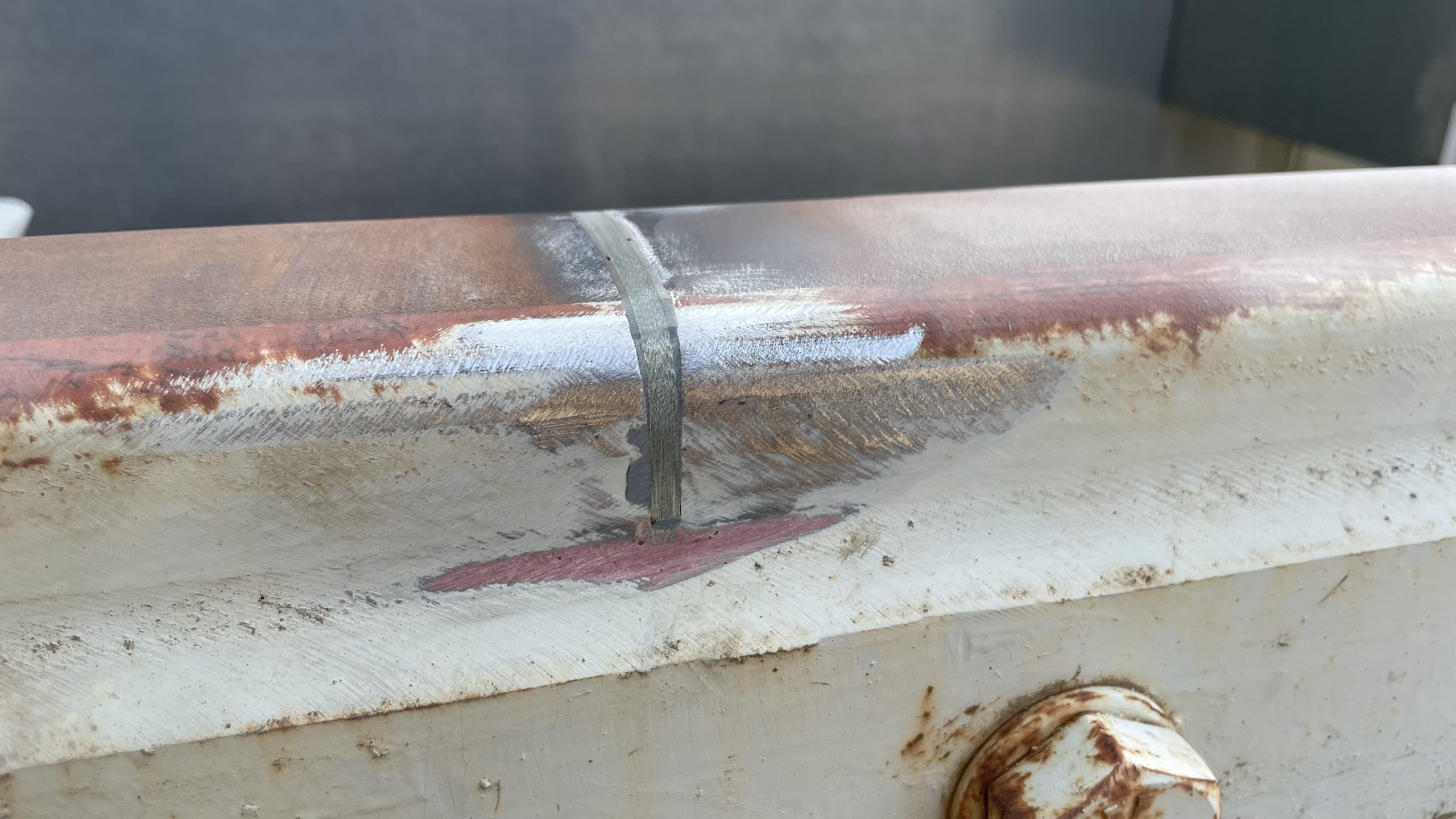

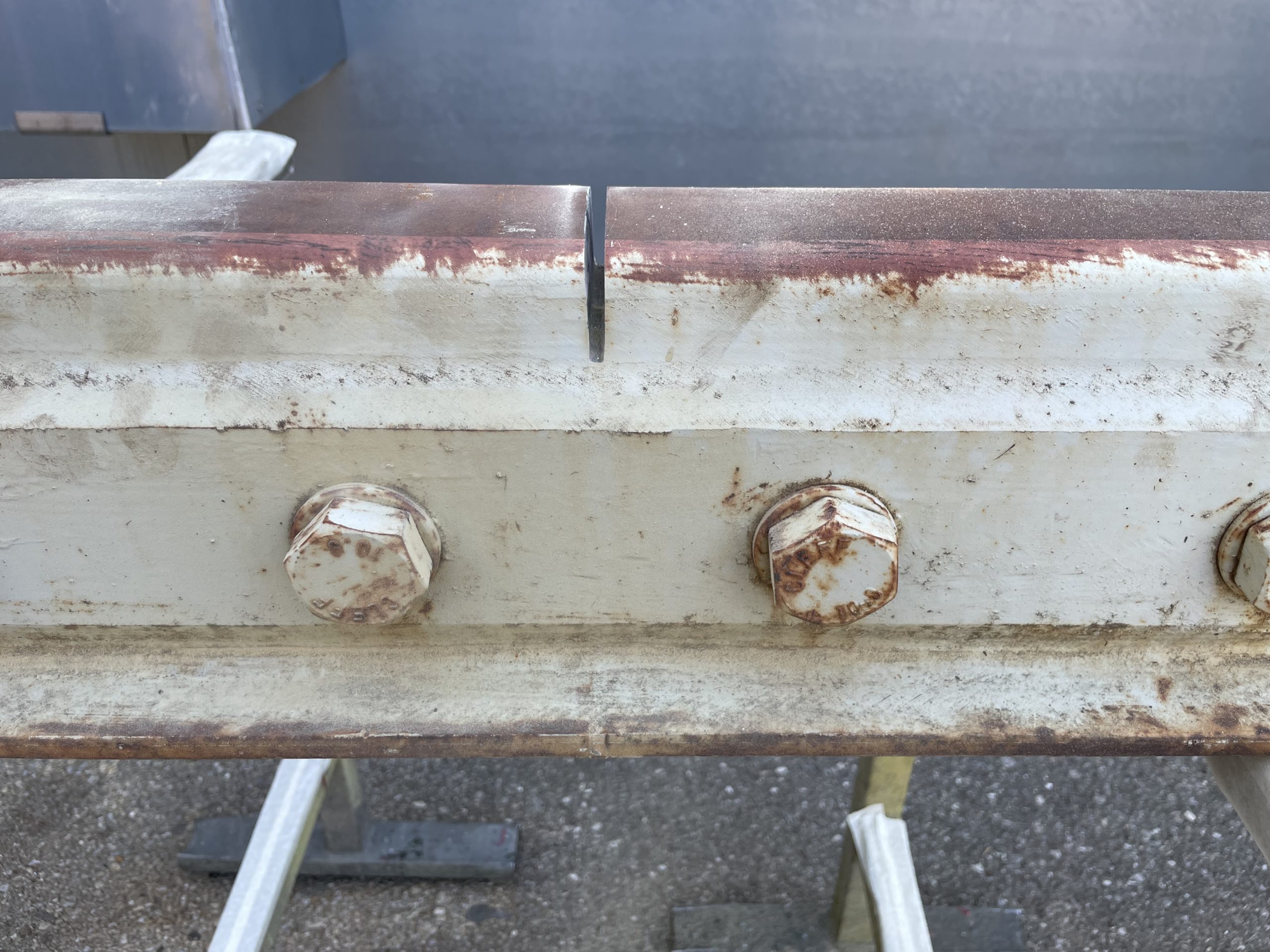

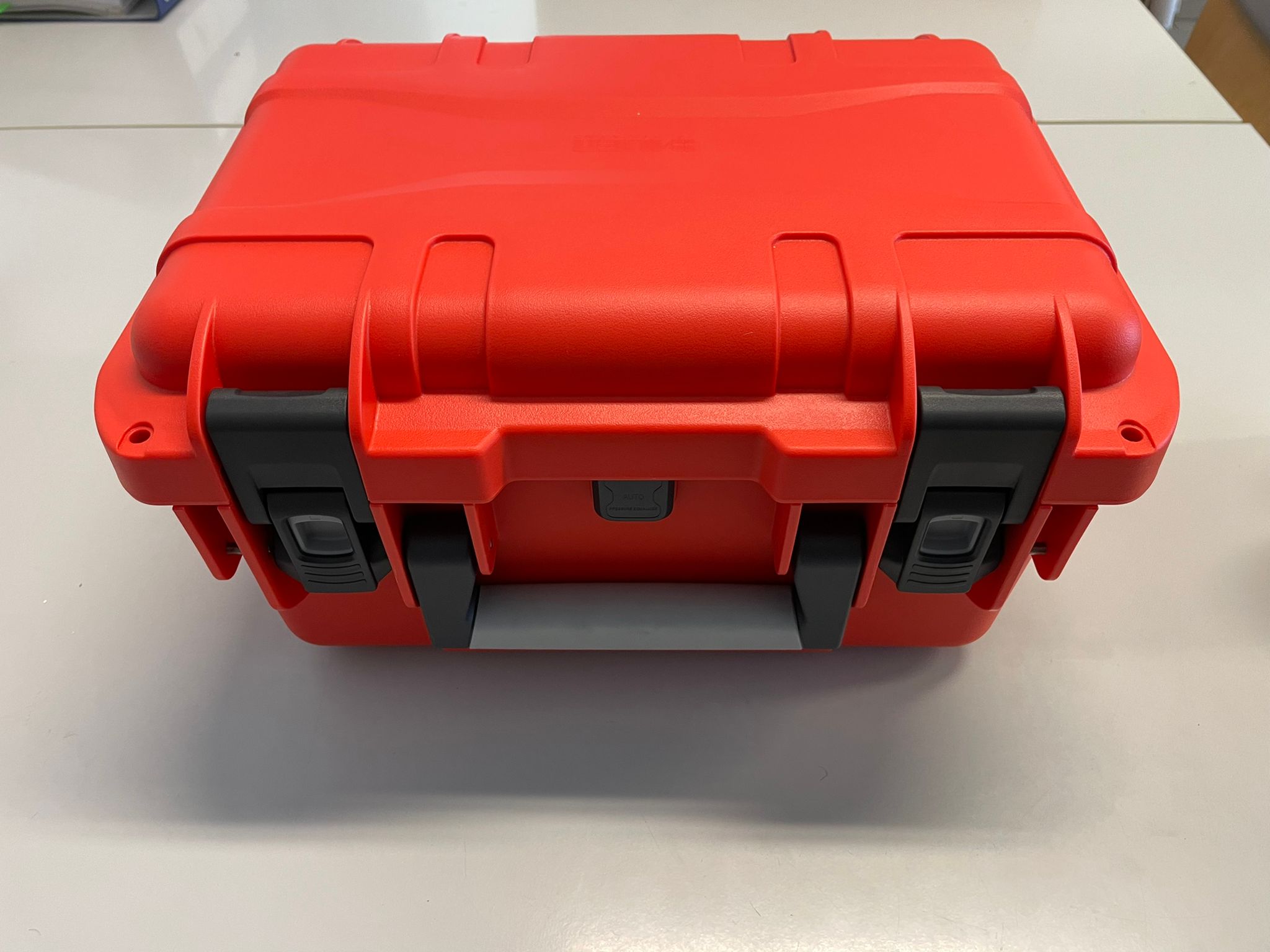

ISR

The repair kit for insulated joints can be used for 25 repairs

  • Repair kit for worn insulating end posts
  • Fast, easy, safe process to renew the insulating end post and close/filling cracks
    nearby
  • Complete kit with all necessary materials
  • According to the air and rail temperature, curing of the adhesive is possible in 10 to 20 minutes
VIEW details

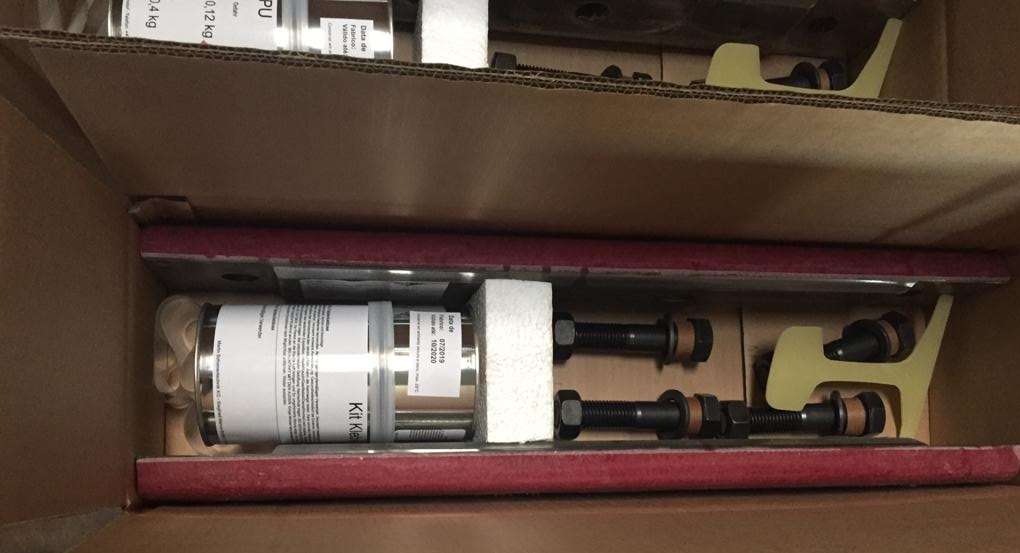

ISB - INSTALLATION ON TRACK

The Kits for Insulated Joints are supplied with precoated fishplates. The KIT is supplied with either a 1-hour.

  • Insulating coating produce in ALMAR plant
  • Rail and fishplates tolerances adapted on each joint
  • System for very short track closures. Can be installed on site or directly in the track
    in only one hour.
  • Secure insulating layer on the fishplate with constant thickness.
  • Simple execution thanks to a safe installation process
VIEW details

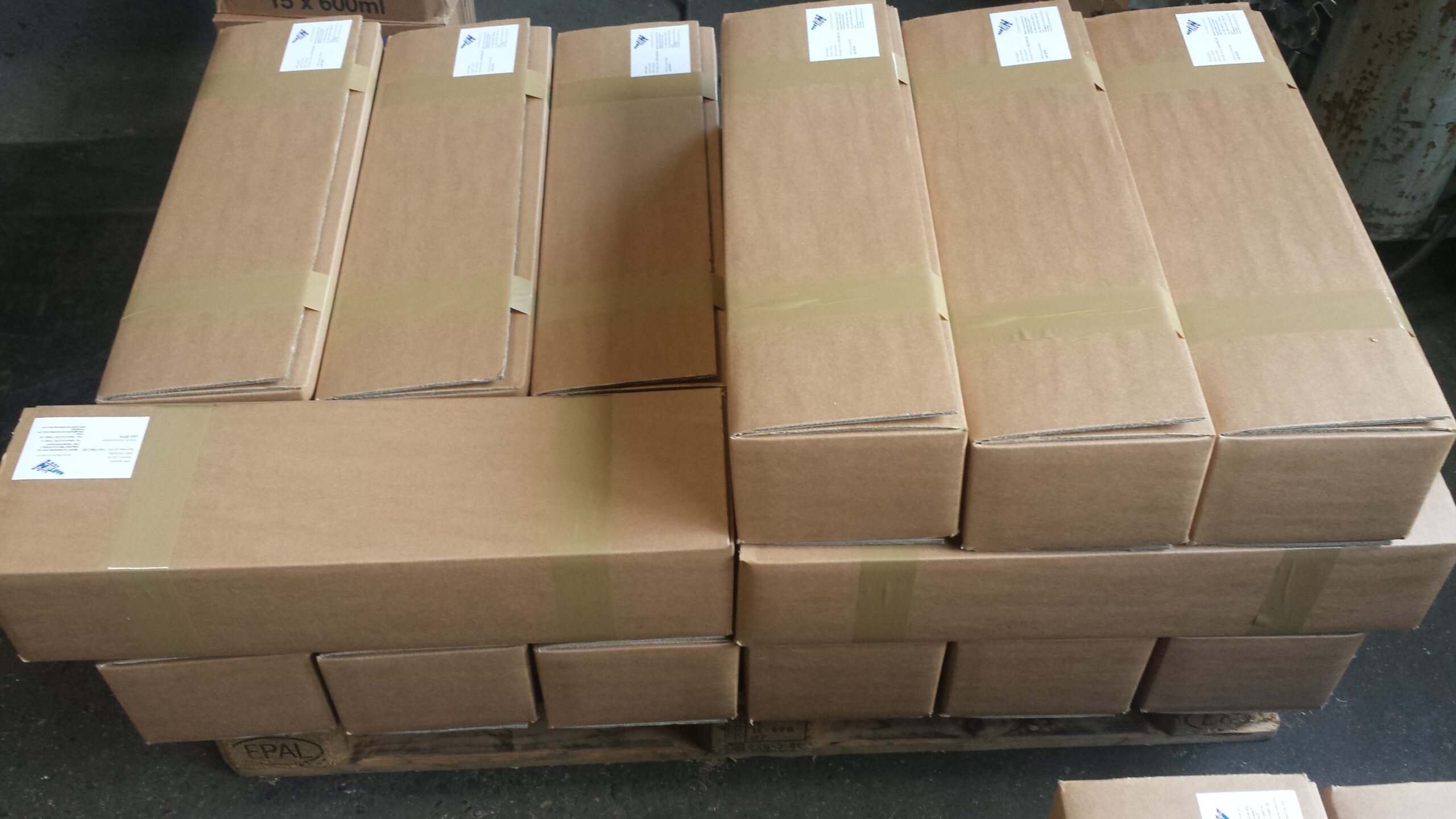

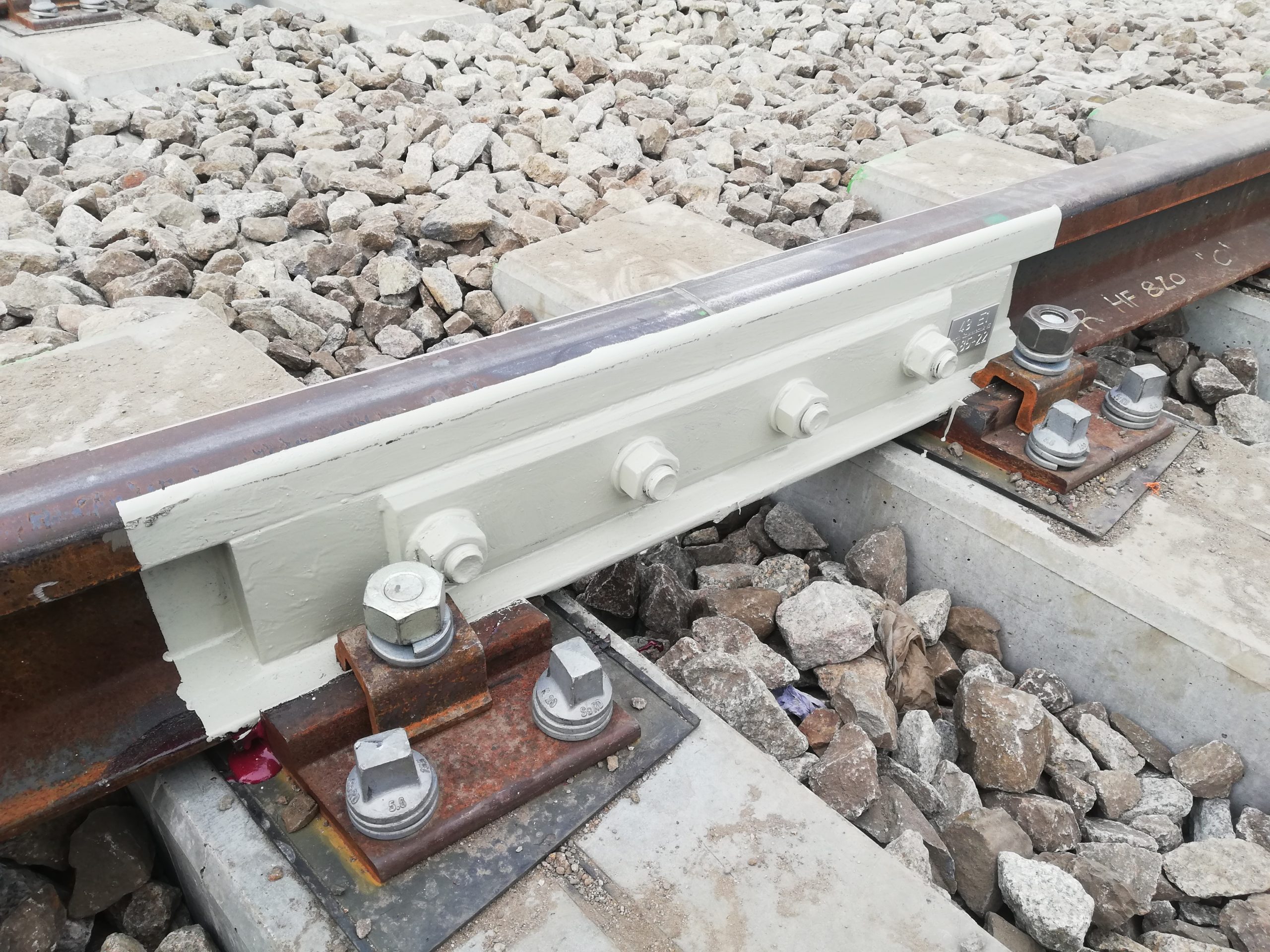

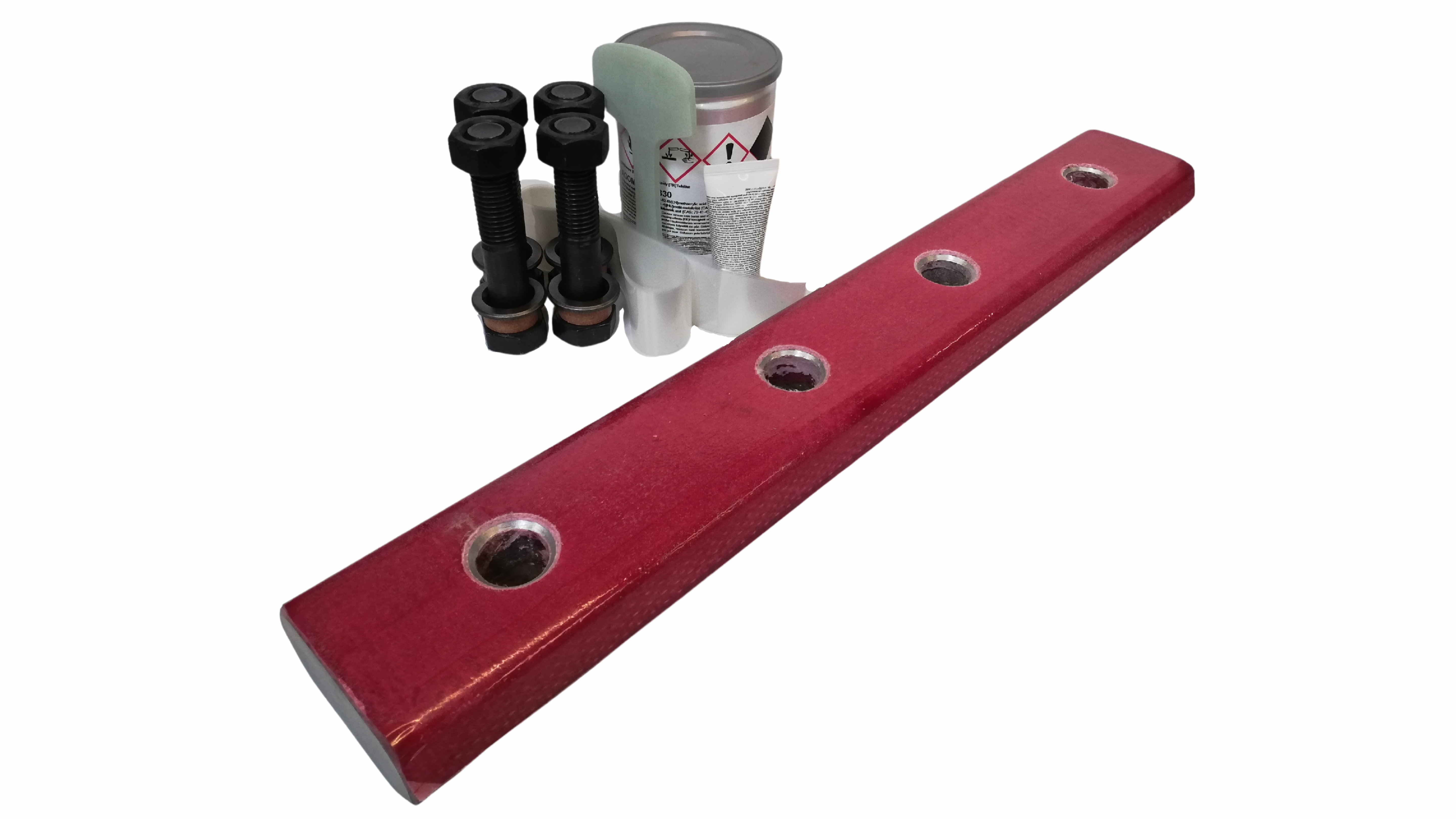

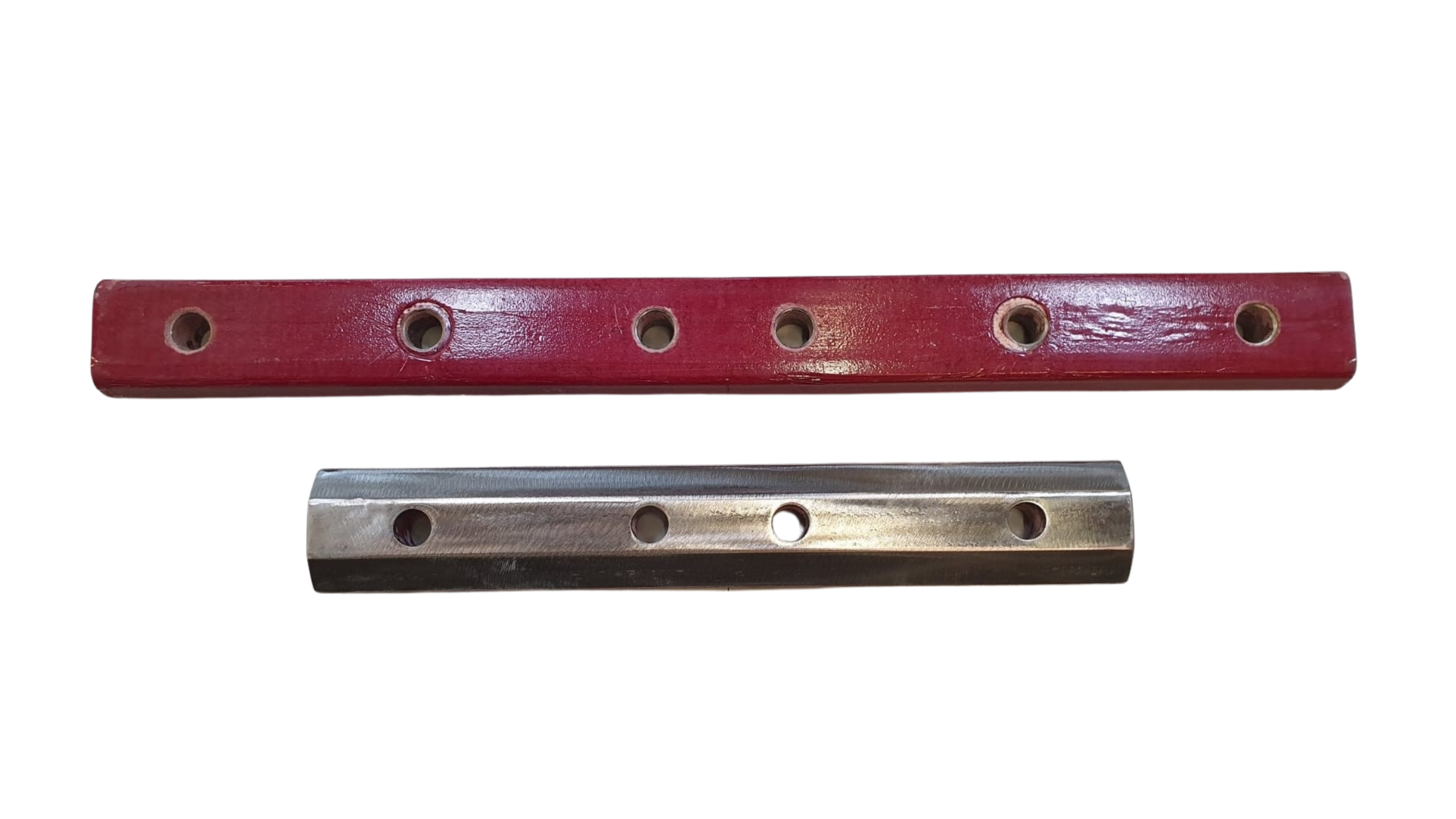

ISB - PRODUCTION ON SITE

Insulated kit joint are provided with the fishplates coated with insulated component.
The KIT is supplied with either a 1 hour drying glue or 7 hours drying glue to be used
in track or on site. The fastening components are adapted to the Railways norm
requirements.

  • Insulating and gluing components compatible for fastening process
  • Gluying process save 70% of quantity of glue

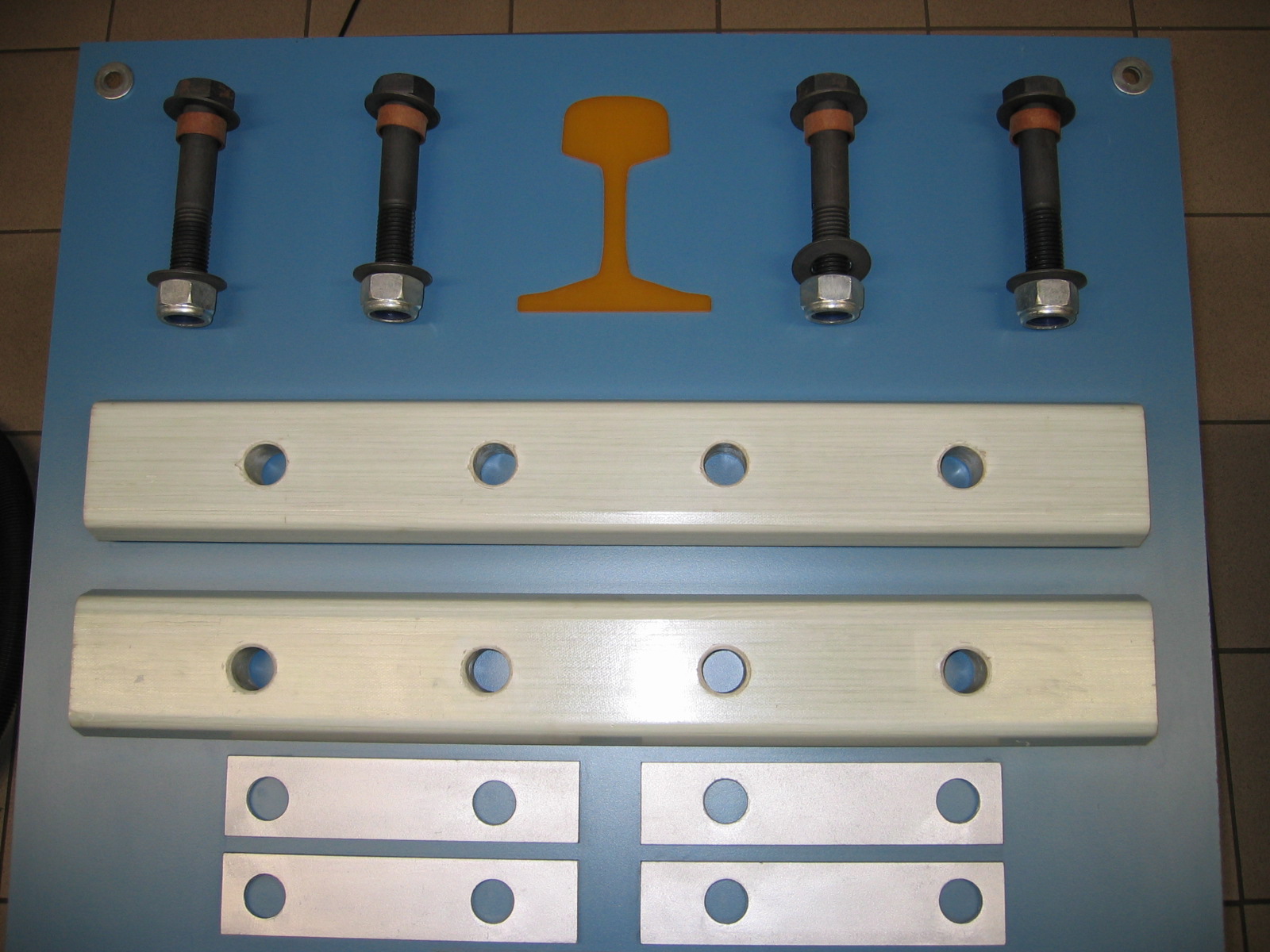

List of components : 2 insulated fishplates, 4 or 6 Bolts + washers,
4 or 6 insulating rims, Glue + hardener, 1 end post rail profile

In accordance with our customers and the desired products, we conduct training sessions for the installation. In this way, the production employees are trained to install our products with all the important know-how.

VIEW details

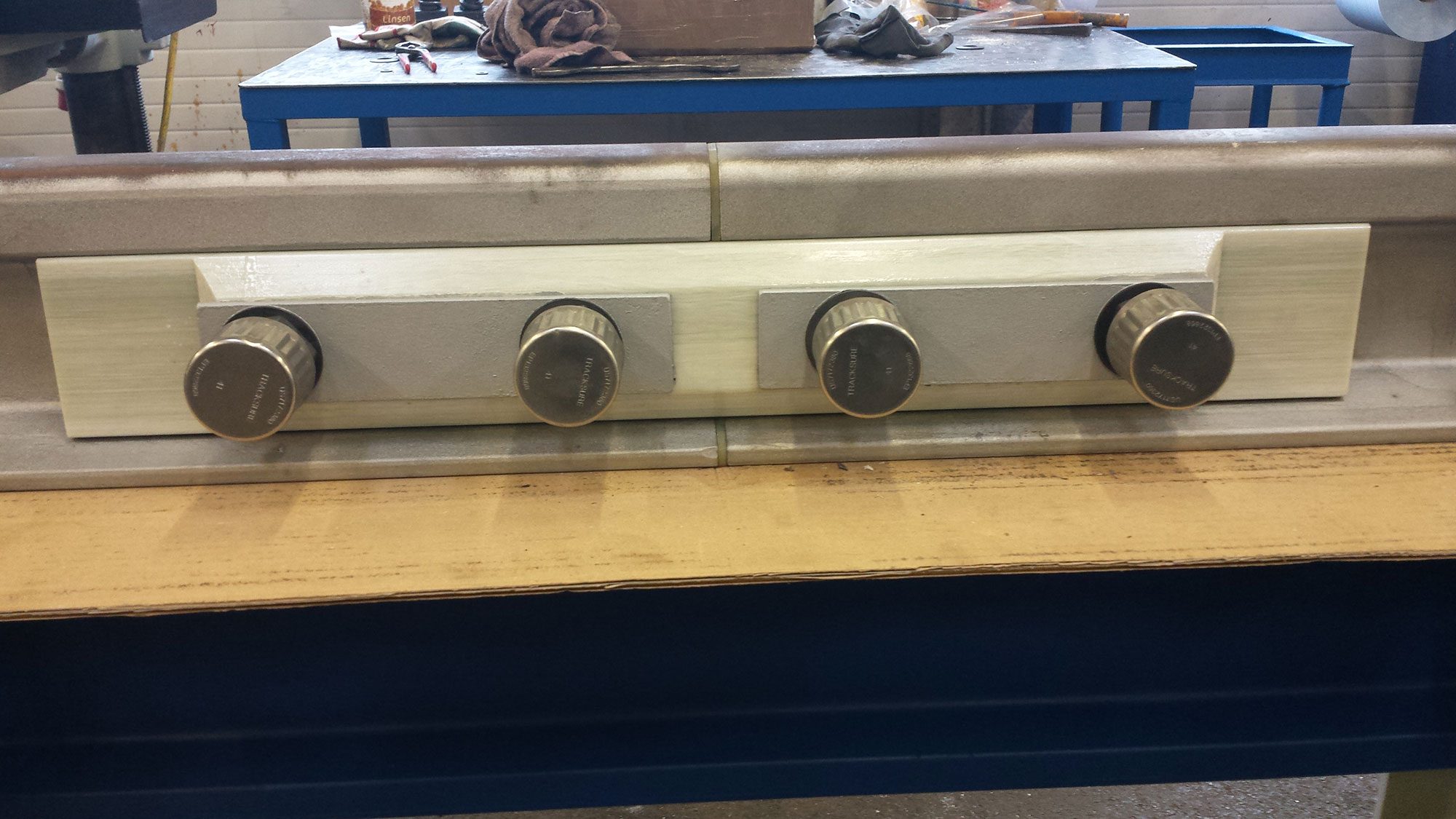

ISK

The Kit for Insulated Polymer Joints is made of reinforced glass fibre composite material.

  • Ideal for temporary integration into
    the safety system where the position
    of the bonded joints has not yet been
    determined
  • For tracks with less traffic and lower
    axle loads
  • Simple assembly by screwing only
  • The ISK system is used at speeds of up to 40 km/h
  • Does not require gluing
VIEW details

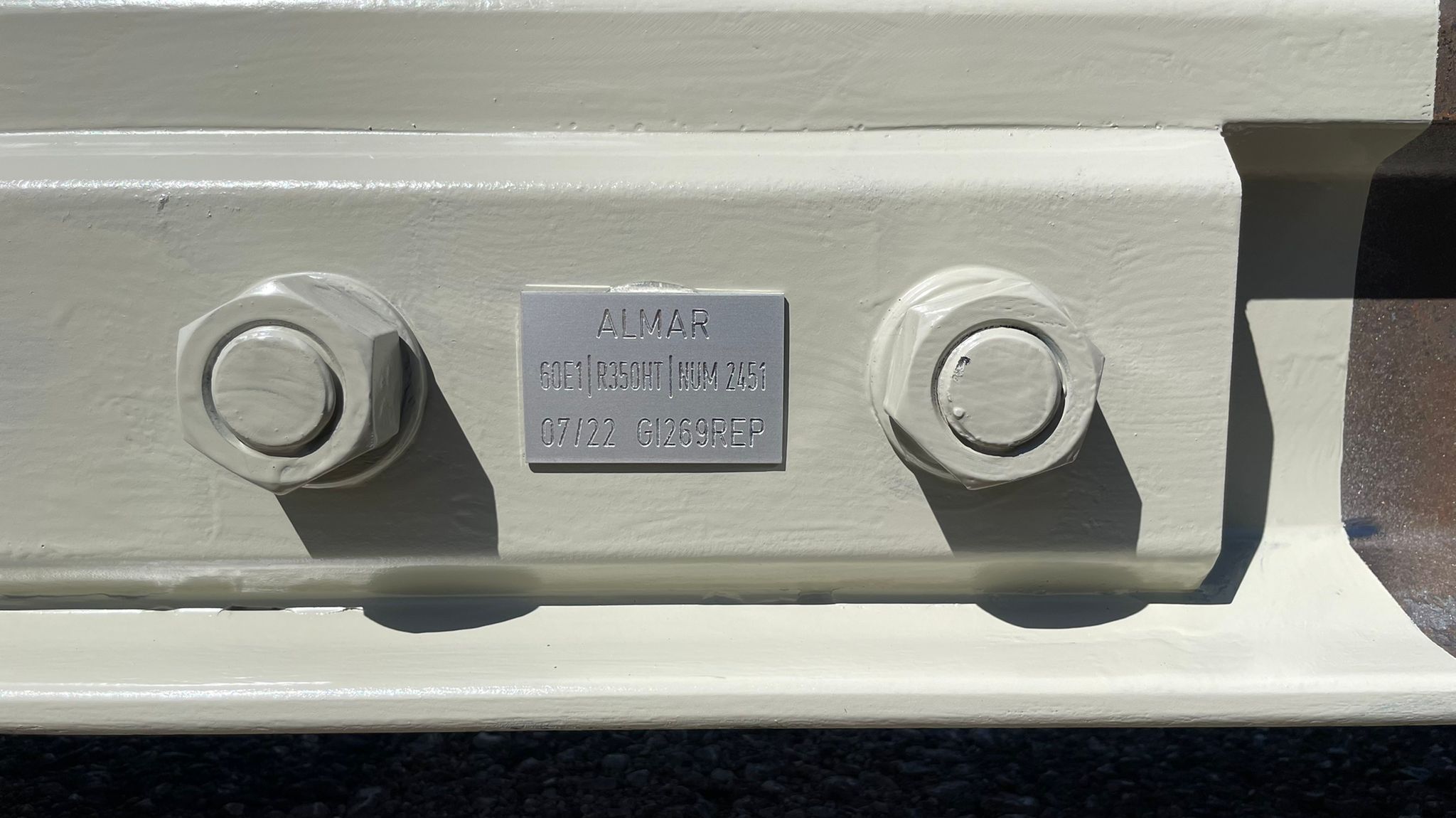

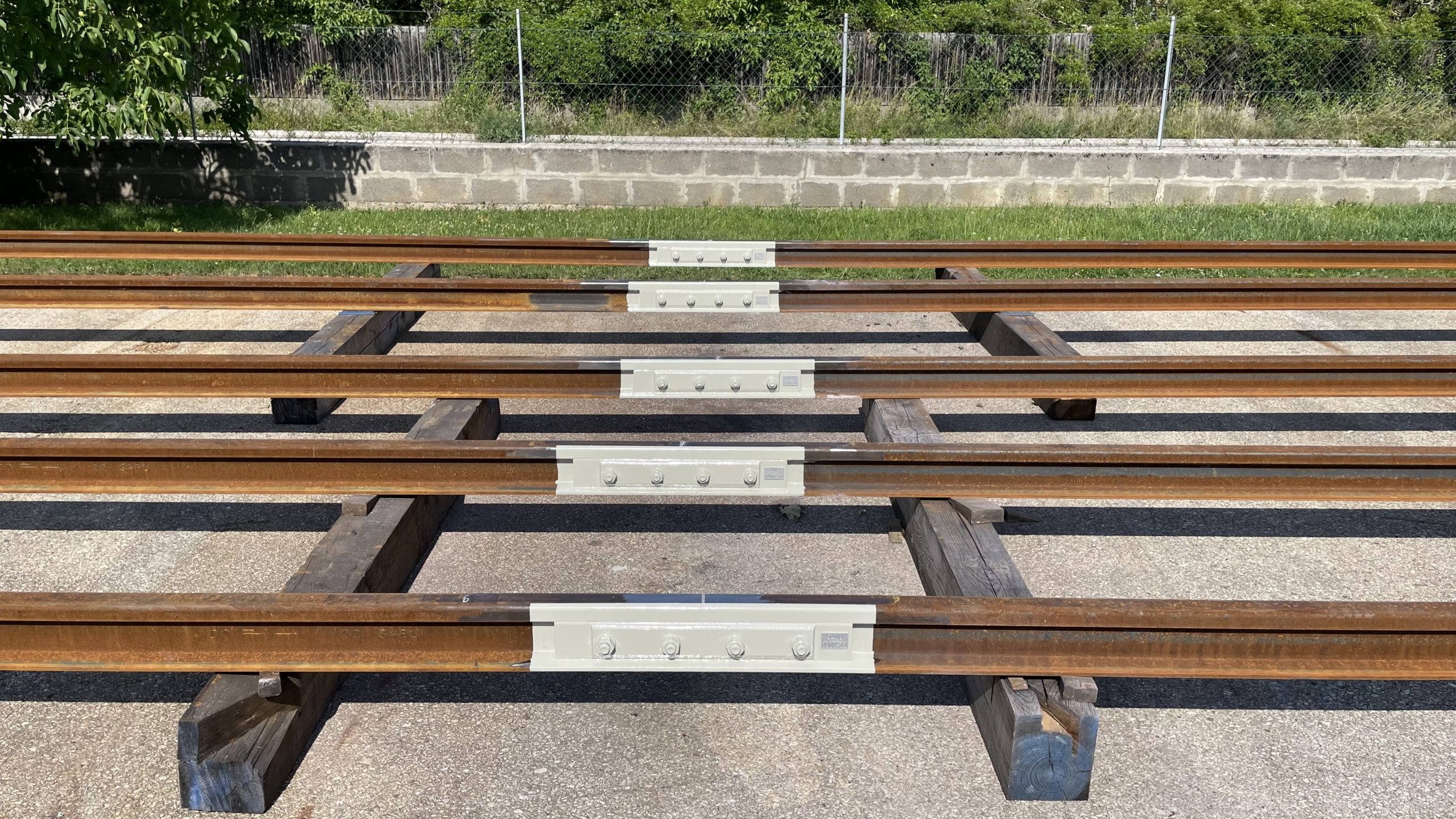

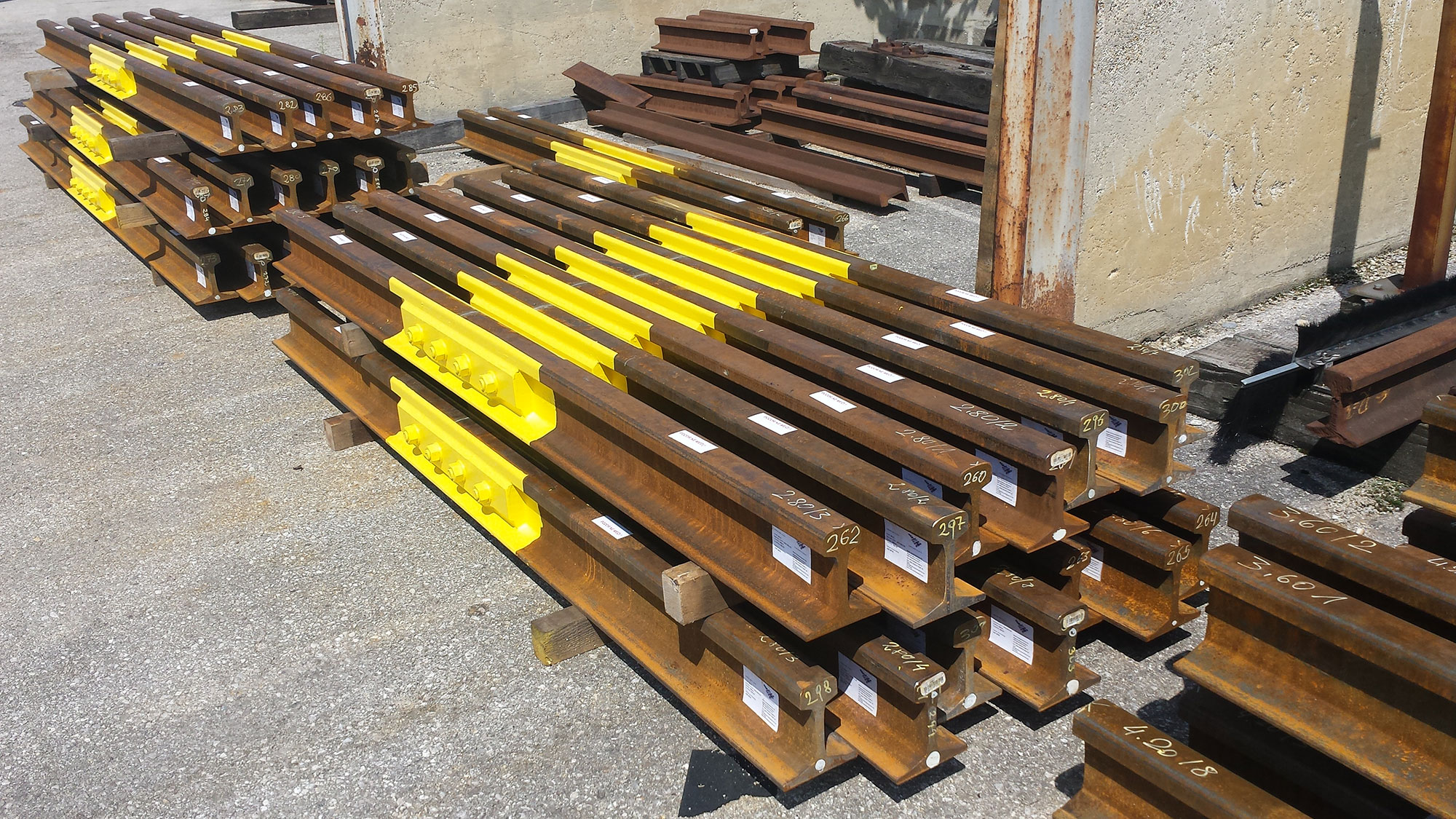

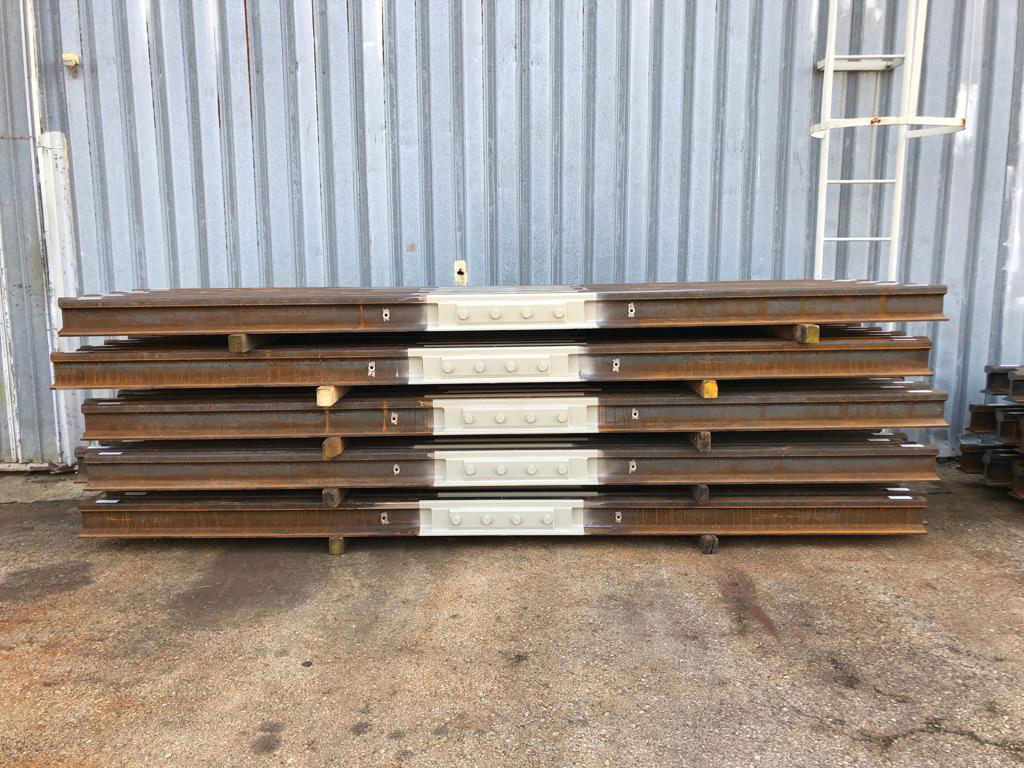

ISW Insulated Joint Workshop

Coupons of rail with insulated joint, produced in our workshop in order to be directly delivered to you.

Details
Type Glued insulated rail joint
Track High speed and Conventional rail track
Rail profile All profiles possible
Fishplates All lenghts
Production ALMAR’s workshop

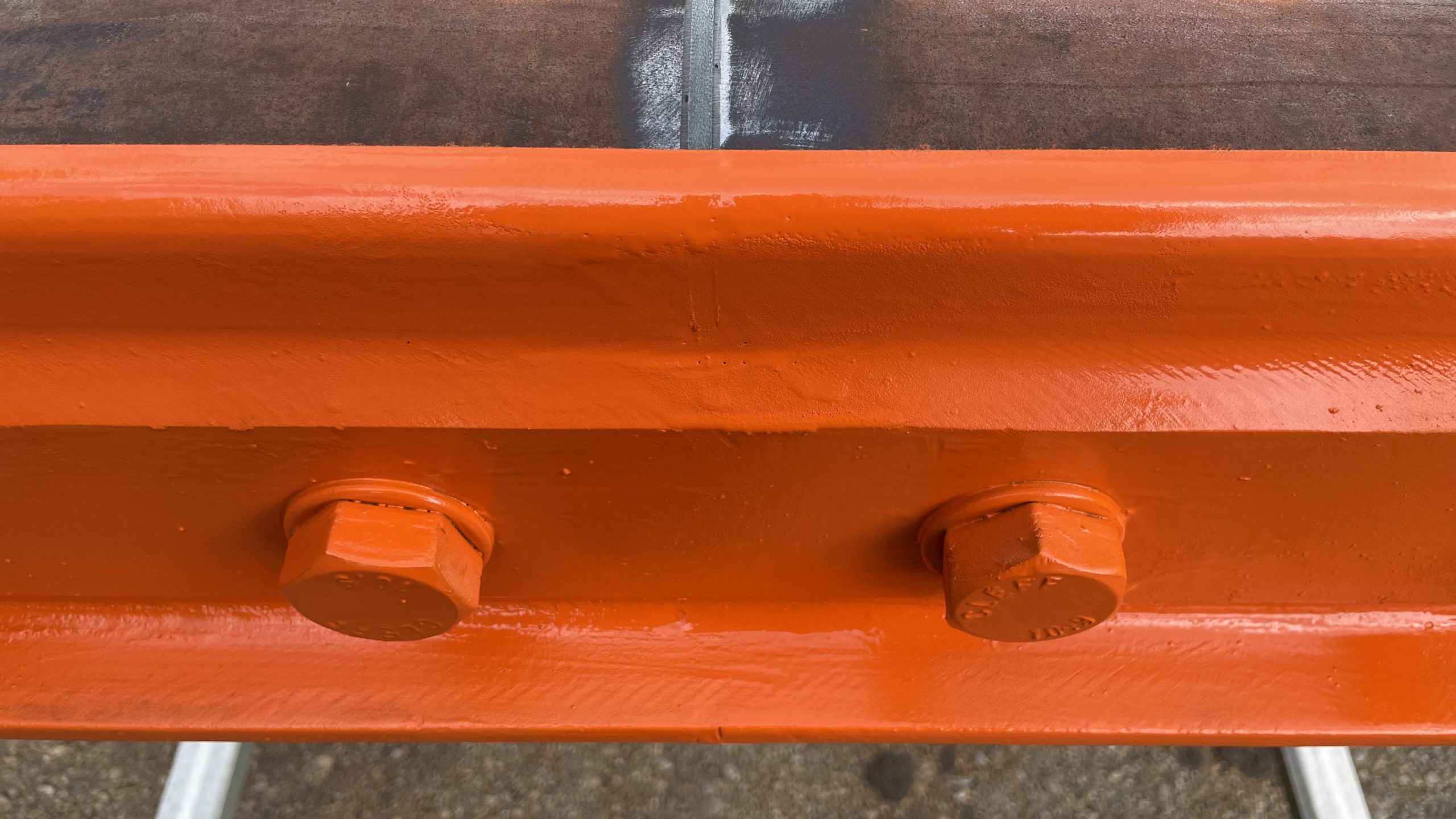

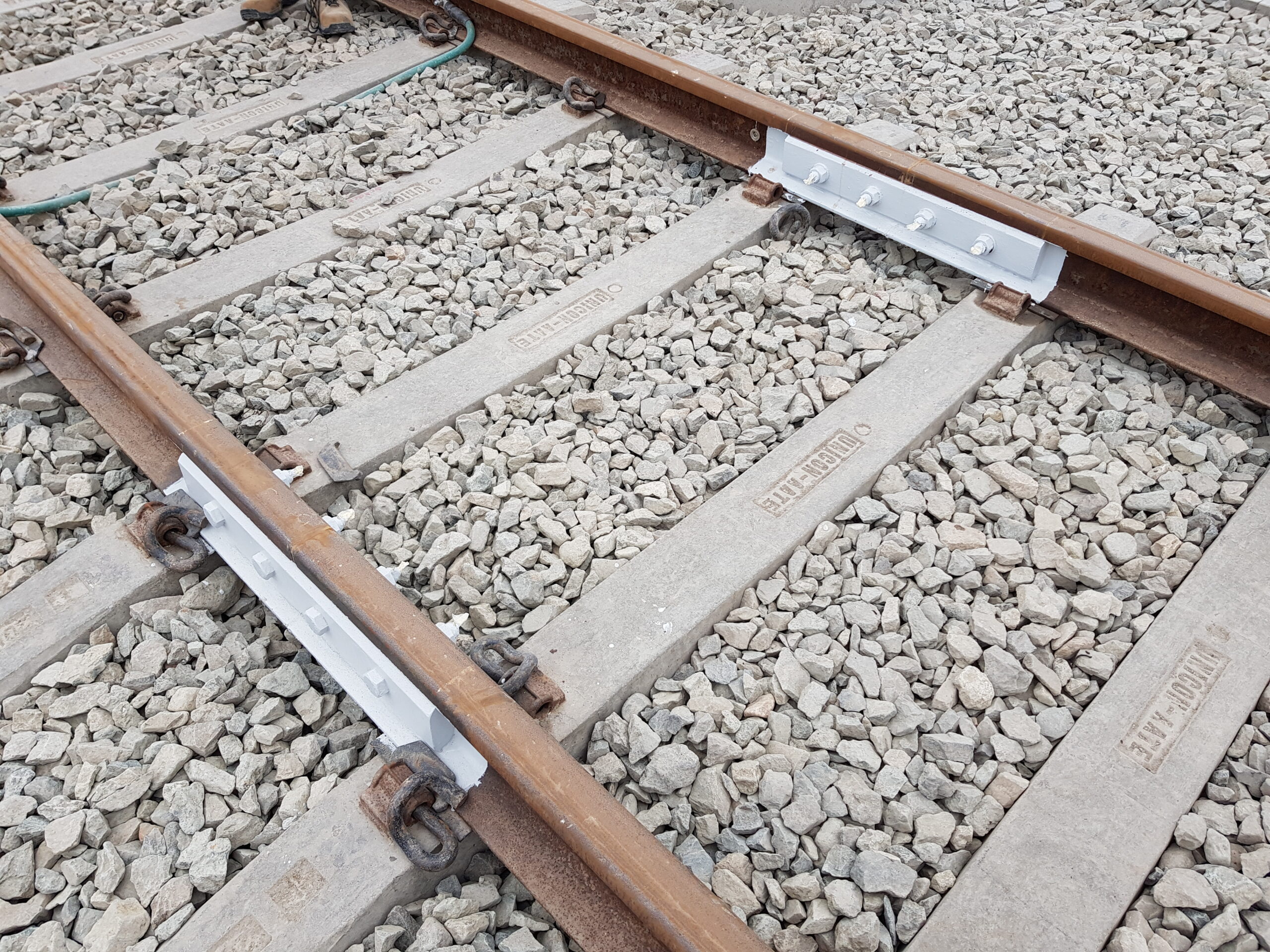

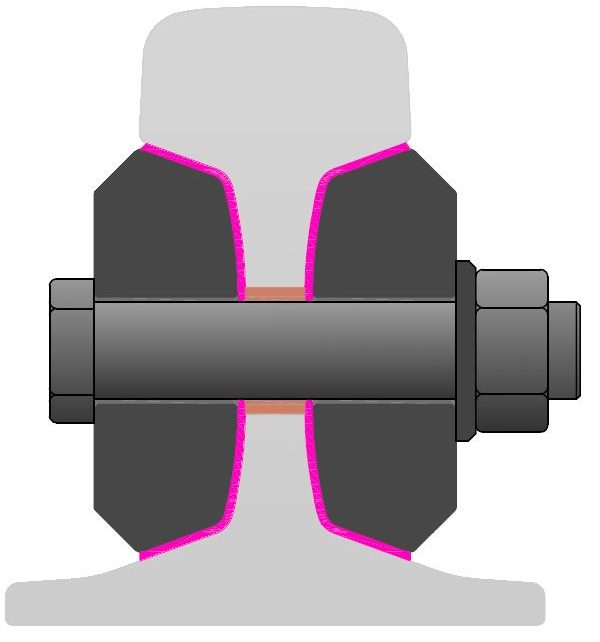

ISB Insulated Joint Track

A kit provided with the fishplates coated with insulated component to allow an installation straight on track.

Details
Type Glued insulated rail joint
Track High speed and Conventional rail track
Rail profile All profiles possible
Fishplates All lenghts
Production On track

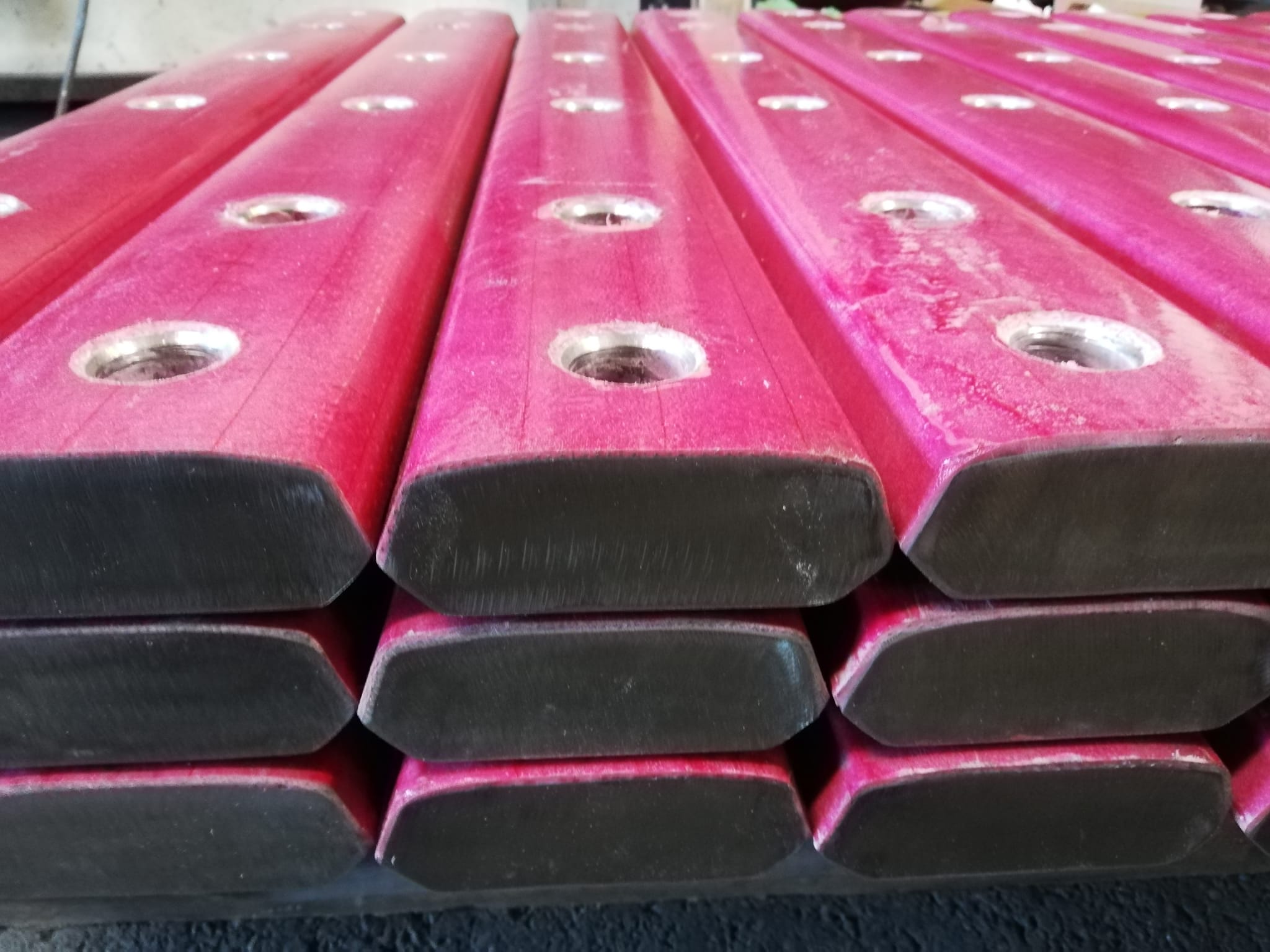

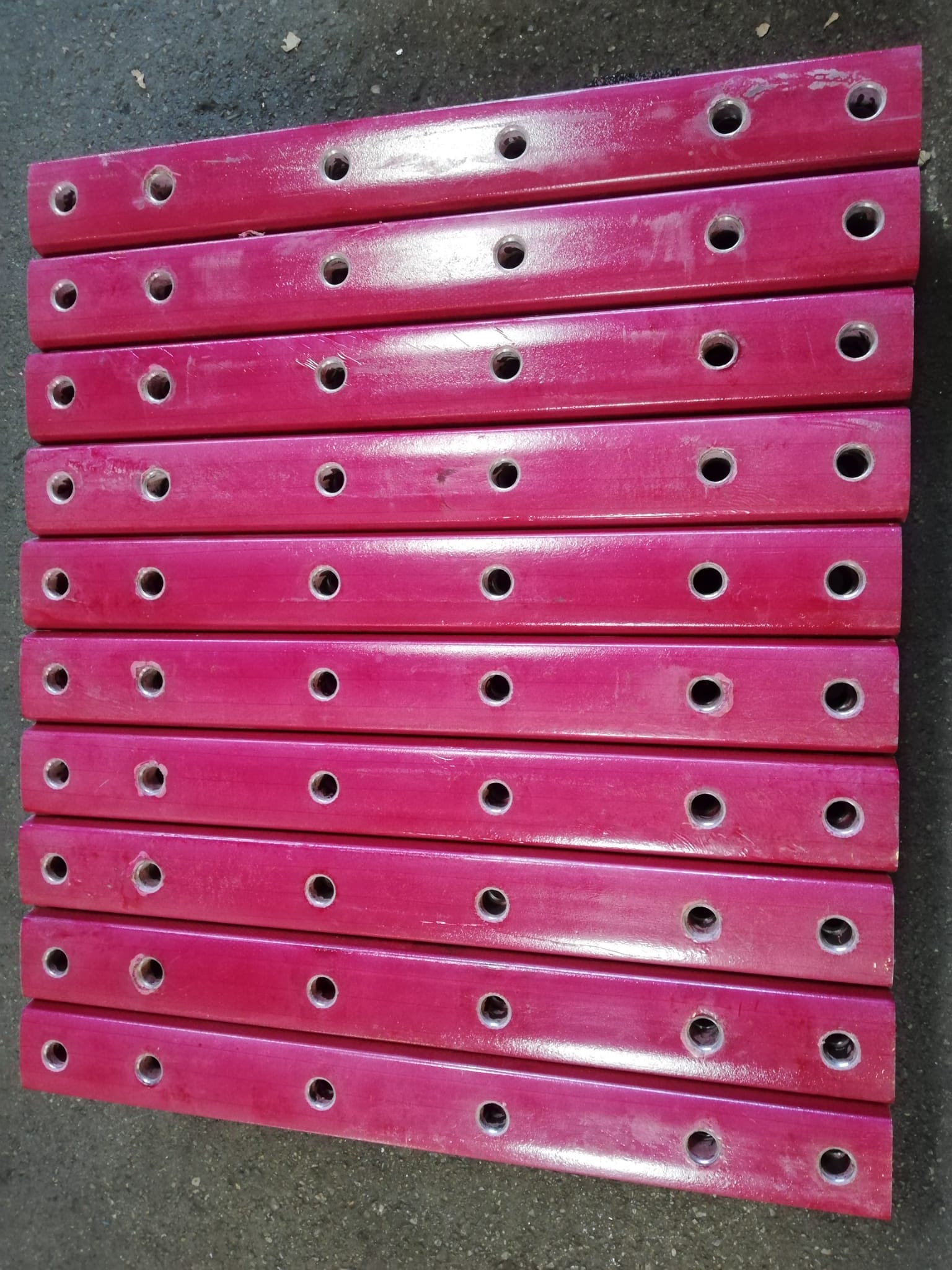

ISB-Pro solution.
  • Insulating and gluying components
    compatible for fastening process
  • Gluing process save 70% of quantity of
    glue
  • System in two versions with longer
  • ISB Pro (7 hours) or shorter ISB Pro Rapid (3 hours) curing time
  • Simply performance depending on a
    safe assembling process
  • List of components:
    – 2 insulated fishplates
    – 4 or 6 bolts and nuts
    – 4 to 12 washers
    – 4 or 6 insulating sleeves
    – 1 glue and hardener
    – 1 end post
Details
Type Glued insulated rail joint
Track High speed and Conventional rail track
Rail profile All rail profiles
Fishplates All lenghts
Production On track

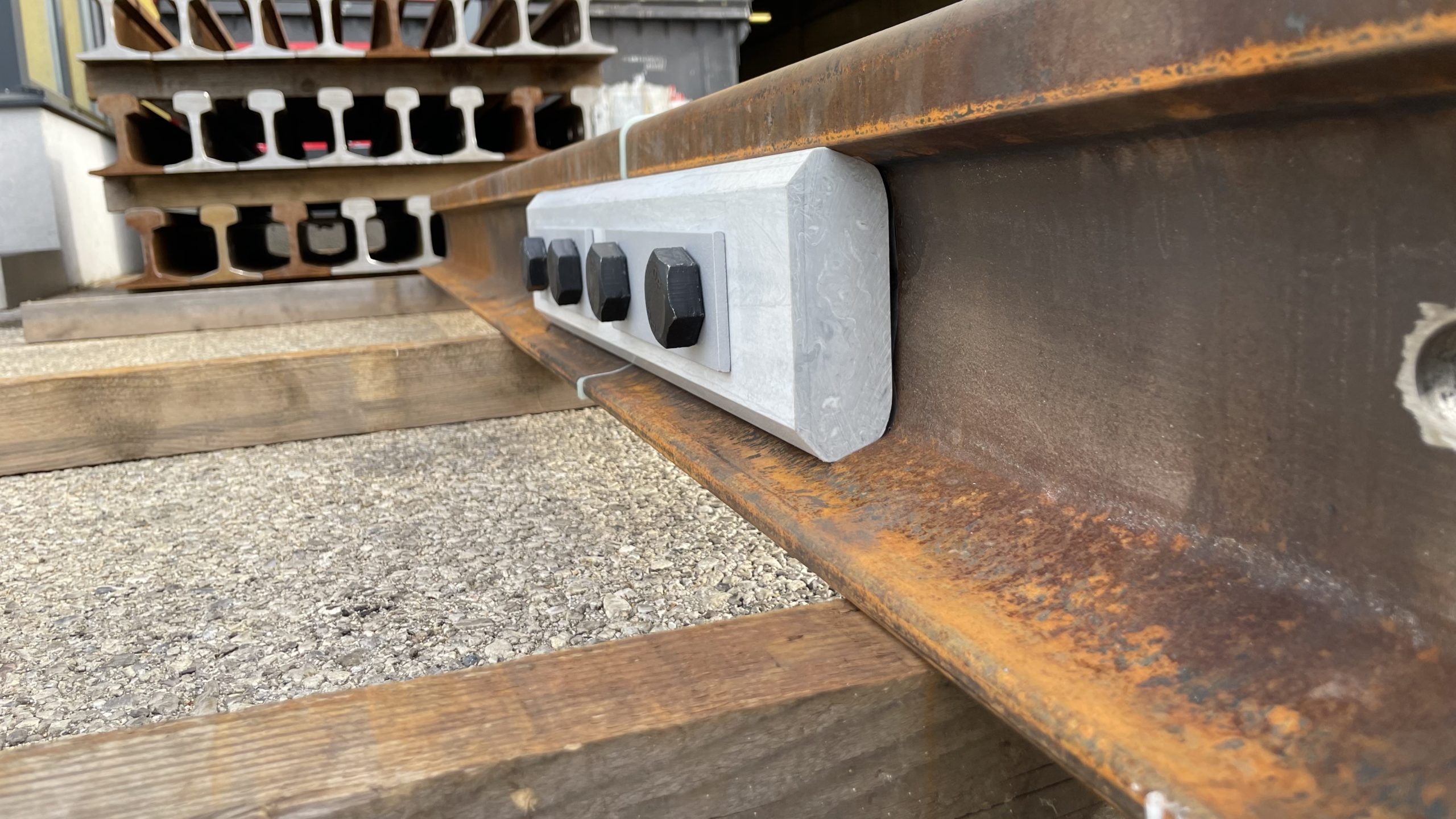

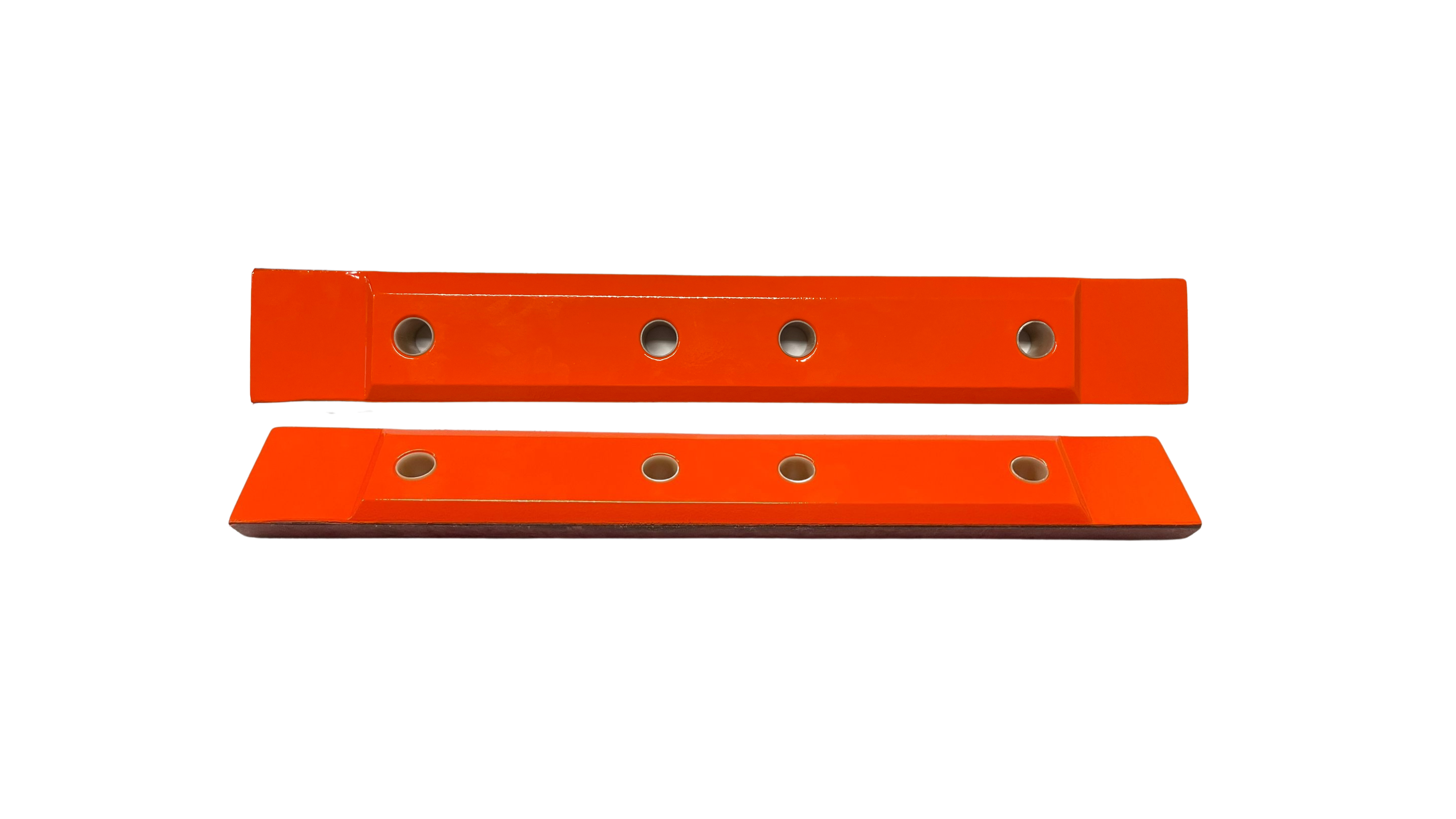

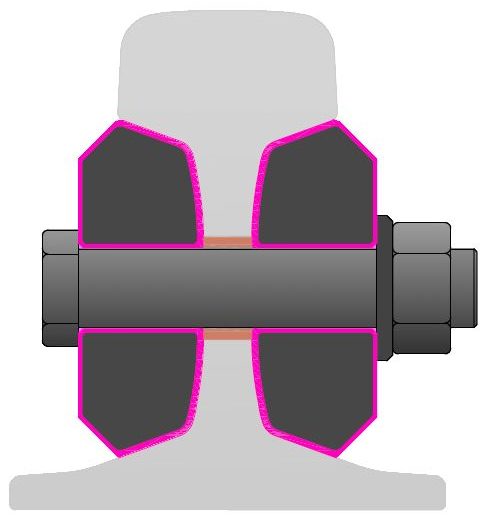

ISD
  • High-strength rail fastening with pre-insulated, coated
    fishplates
  • Strong and durable system by using steel fishplates
  • Simply assembling by process only be screwing
Details
Type Mechanical insulated rail joint
Track Conventional rail track
Rail profile All profiles possible
Fishplates All lenghts
Production On track

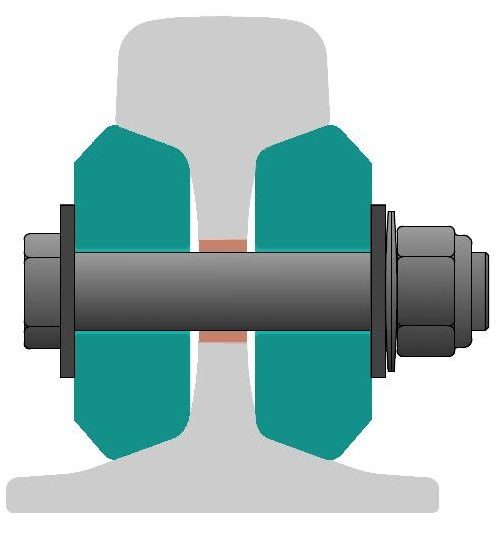

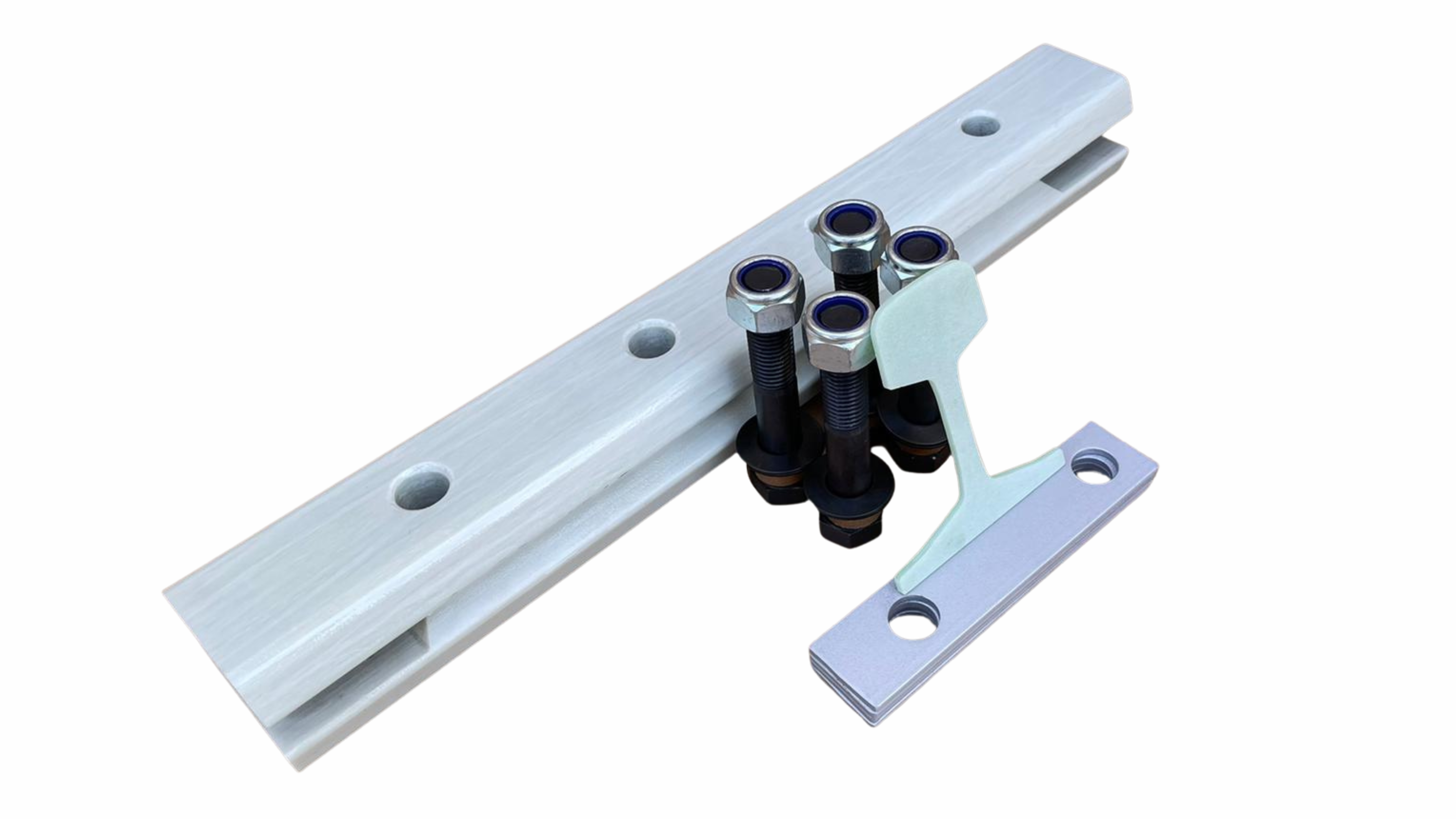

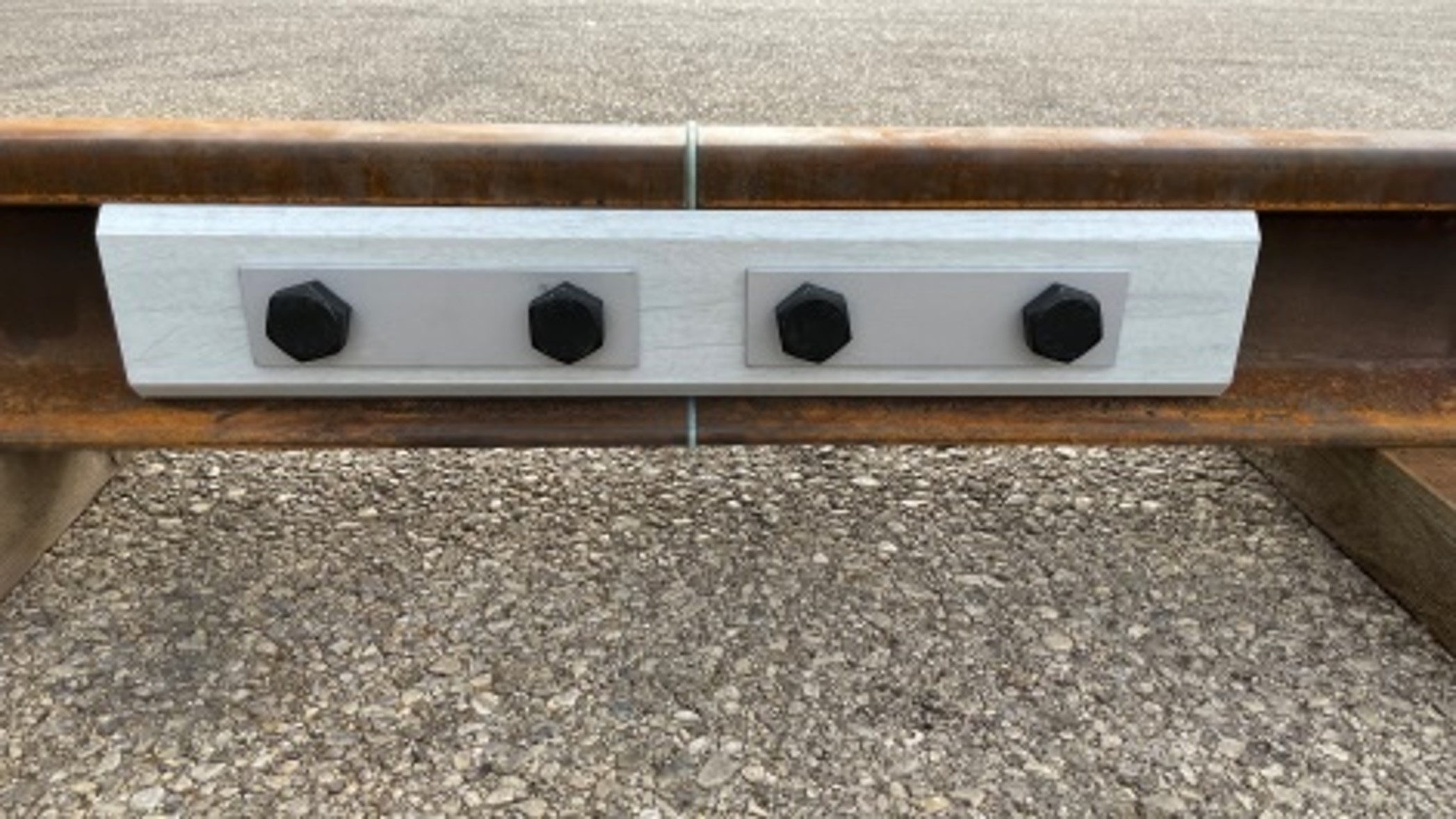

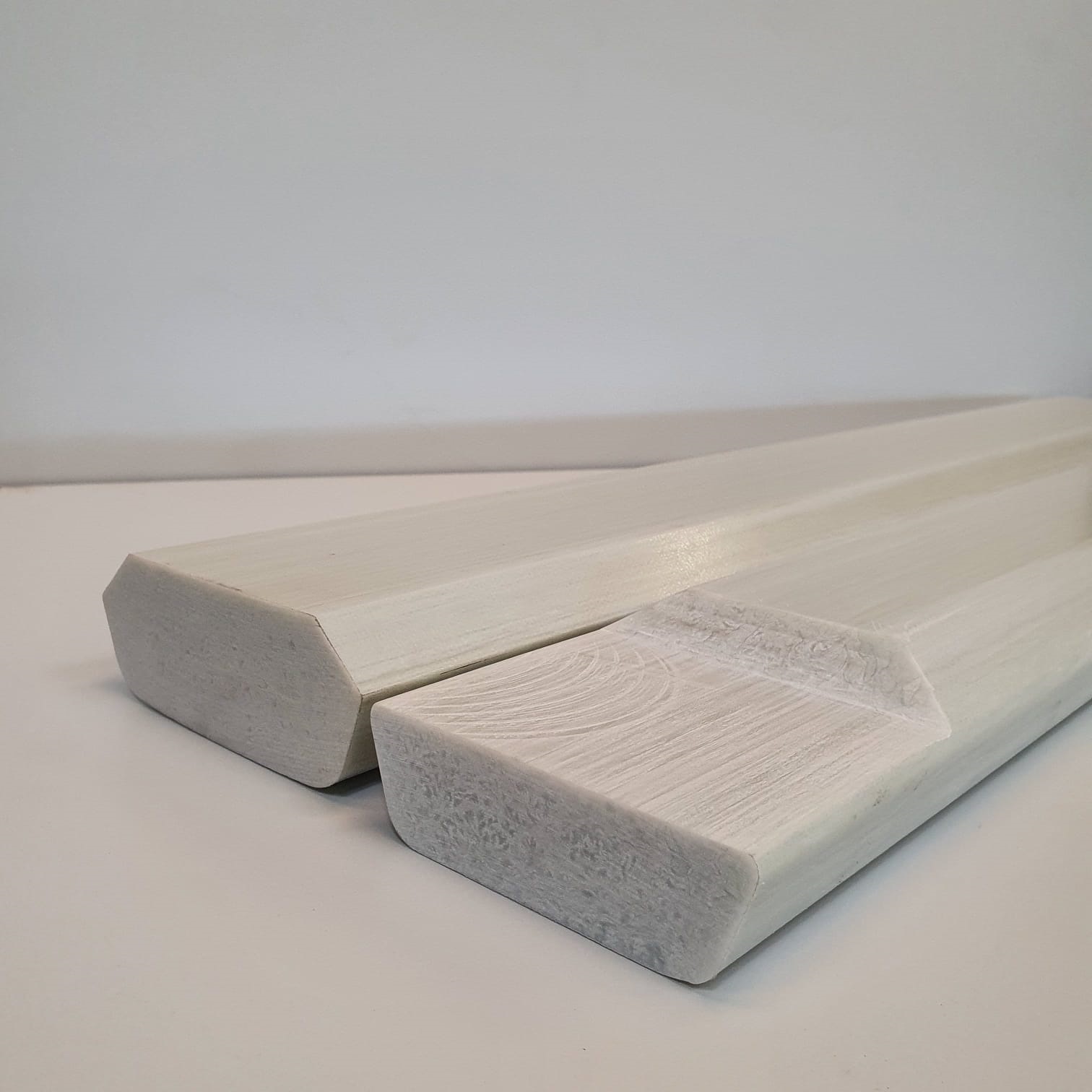

ISK

A mechanical Insulated rail joint made from reinforced
fiberglass.

Details
Type Mechanical insulated rail joint
Track Conventional rail track
Rail profile standard profiles: 49E1, 54E2, 60E1, others are possible
Fishplates Standard 650mm
Production On track

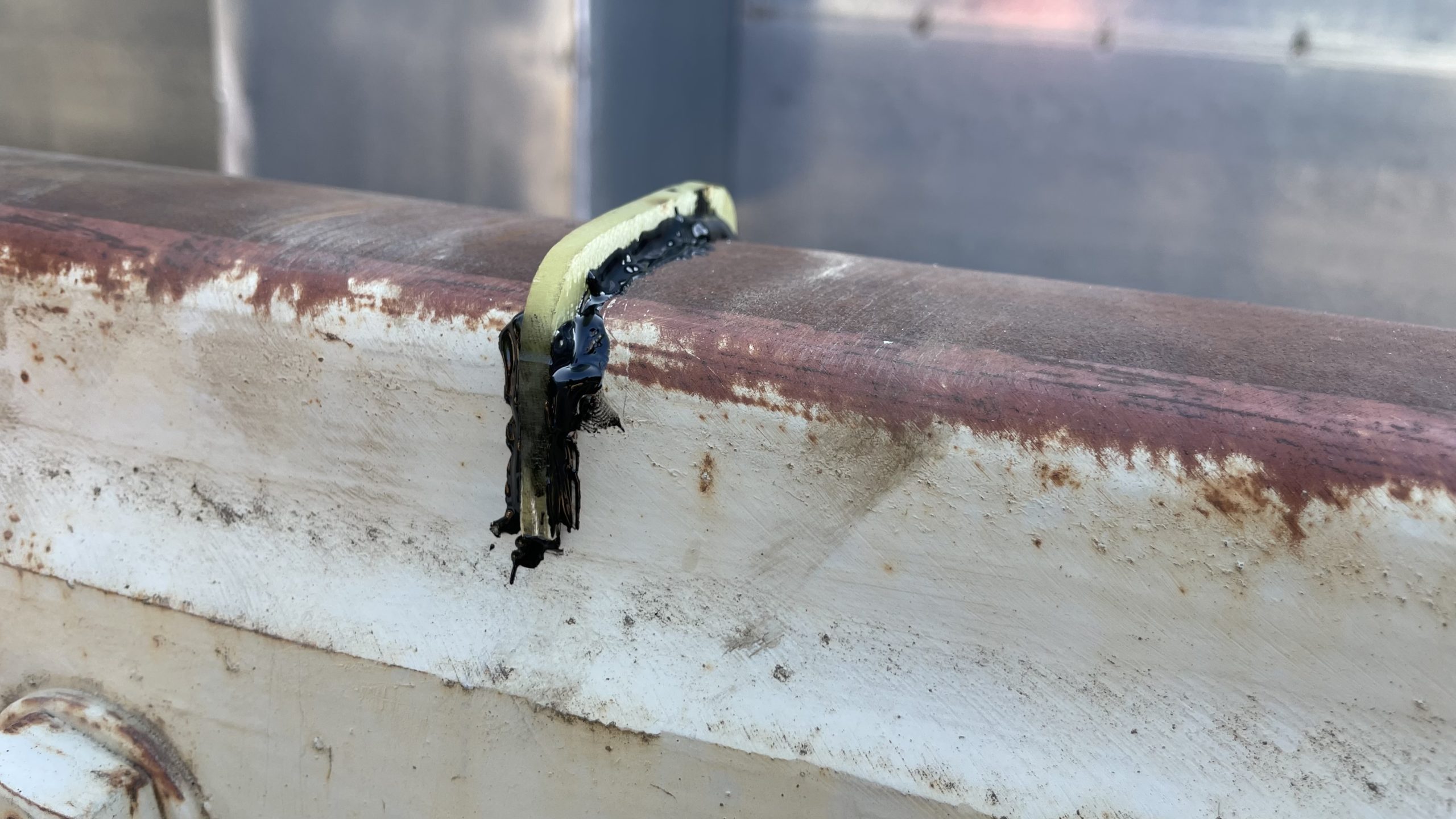

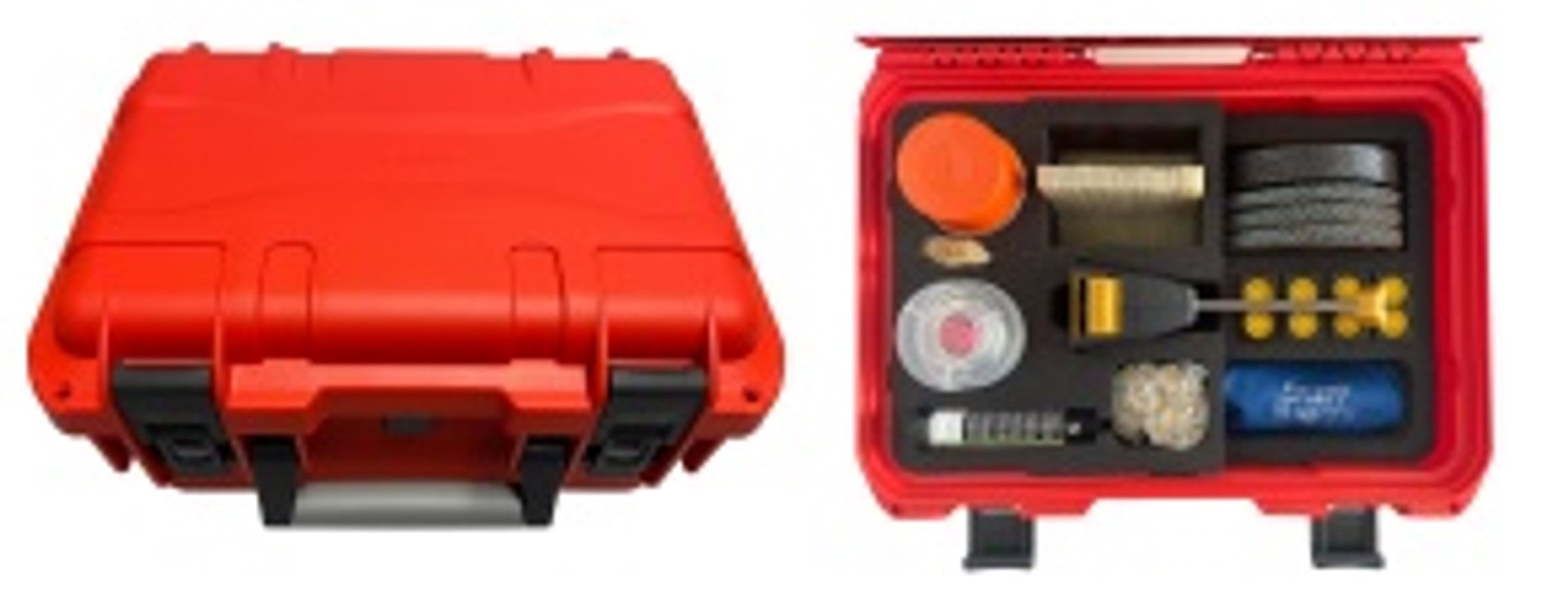

ISR

The insulated joint repair kit can be used to repair 25 insulated rail joints

Details
Type Glued insulated rail joint
Track High speed track and Conventional rail track
Rail profile All profiles possible
Fishplates –
Production On track
